BARIATRIC/INTENSIVE CARE AMBULANCE

Product code : 01

0đ

Quantity:

Introduction
Comments

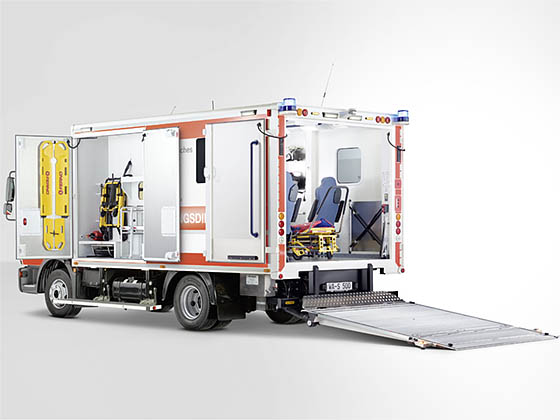

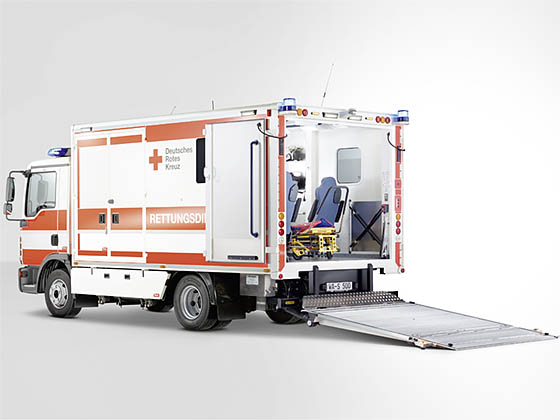

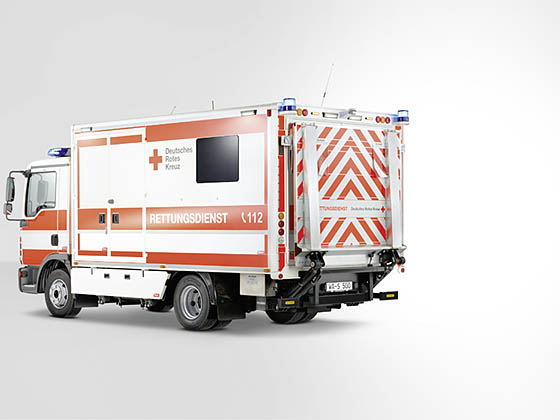

This large vehicle offers flexible solutions for a wide field of applications. With a maximum weight of 7.49 to, the vehicle can be driven with a category C1 driving licence. The large patient compartment offers plenty of space to manage even a very complex intensive transport. The vehicle is also perfectly equipped for the transport of obese patients. A heavy-duty stretcher or a hospital bed can be easily loaded into the vehicle by means of a lifting platform. All seats in the patient compartment can be installed or removed on airline rails.

Model	Bariatric/Intensive care transport ambulance
Interior dimensions	Length: 4410 mm Width: 2400 mm Height: 1975 mm
Doors	- Rear double-hinged doors, lockable at 90° and 270° - Hinged door, front right side

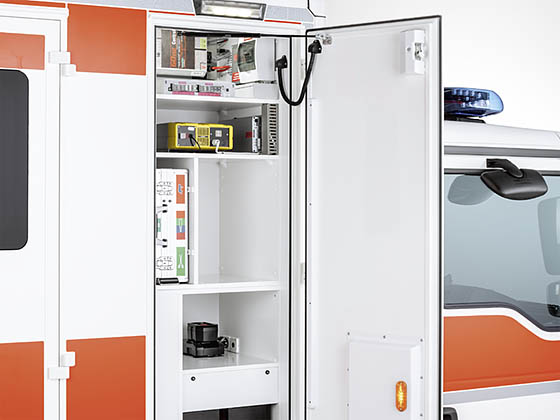

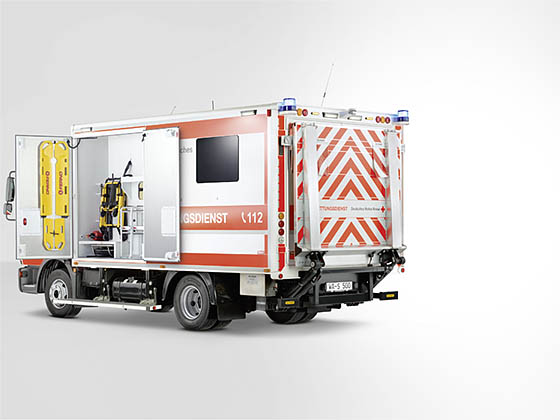

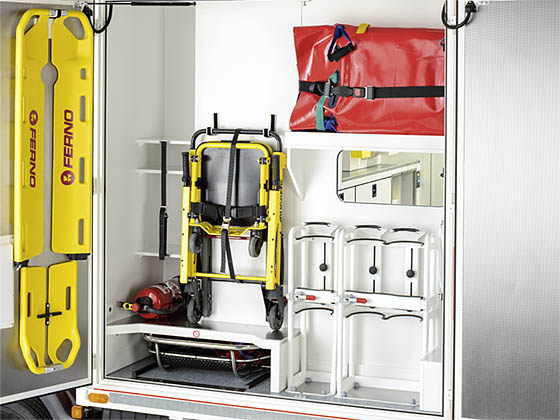

Compartments	- Compartment door on the front right side - Double-hinged compartment door on the front left side

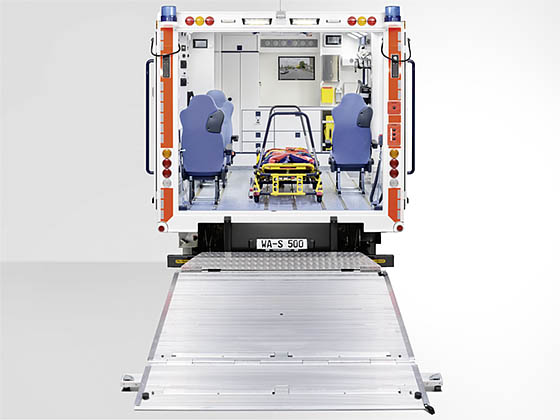

Lifting platform type Dhollandia, capacity 1500 kg platform length 2300 mm
LED working lights
LED front warning light bar type Hänsch DBS 4000 with additional flashers and two power flashers
2 x COMET-B LED lights at the rear
LED front flashers type Sputnik SL
Special warning system type Hänsch 624
2 x 2 dual-tone siren with snow covers
LED rear warning system type Sputnik pico
Rear lights in LED technology
Rear-view camera
Outside panel made of polyester-coated aluminium

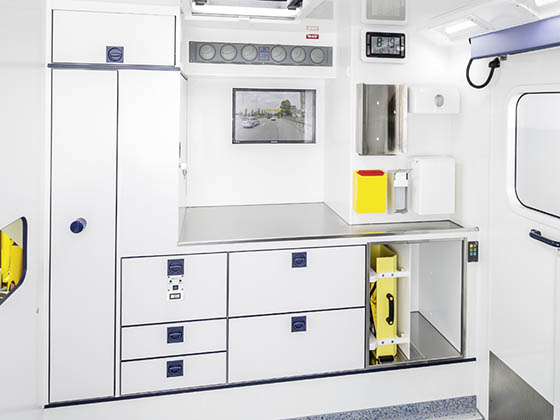

Spacious cabinet at the partition wall, with large working surface
Compressor thermo box

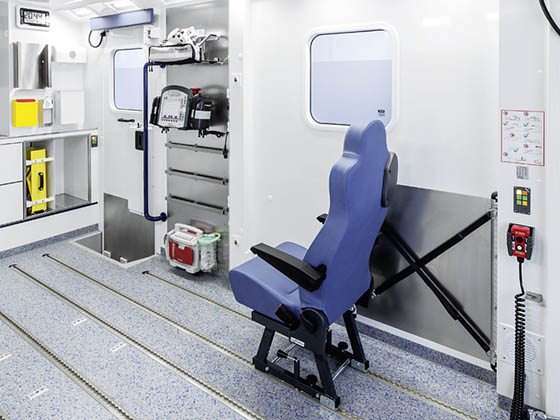

Flexible assembly on airline rails in the patient compartment
Possibility for the fixation of a hospital bed or a bariatric stretcher
Removable and sliding table on the left side wall

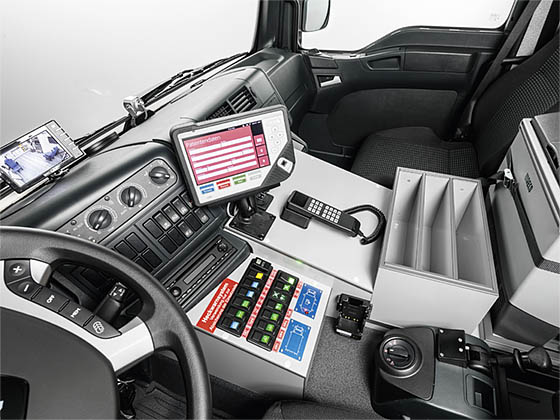

Comfortable operation of the whole technology by means of touch display (CAN bus)
Inverter 1800 VA
Additional battery pack 2 x 104 Ah
Under-voltage protection
LED interior lighting with integrated blue trauma light
Intercom system to the driver’s compartment
Patient compartment with camera surveillance
Live transmission of the road traffic on a monitor in the patient compartment
DVD system with transmission to the monitor on the partition wall
Auxiliary air heater 5.5 kW
Automatic climate control in the patient compartment
Monitor for the control of the patient compartment
Intercom system to the patient compartment
Rear-view camera
Navigation system
Hands-free car kit 4 m – radio system
Hands-free car kit TETRA radio system
Refrigerator 18 litres

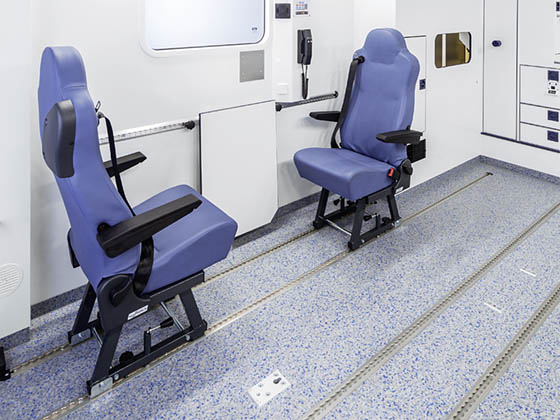

Airline rails in the vehicle floor offer a great flexibility for seats and stretcher support systems

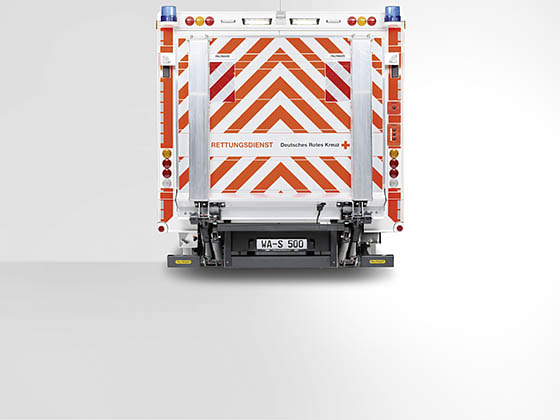

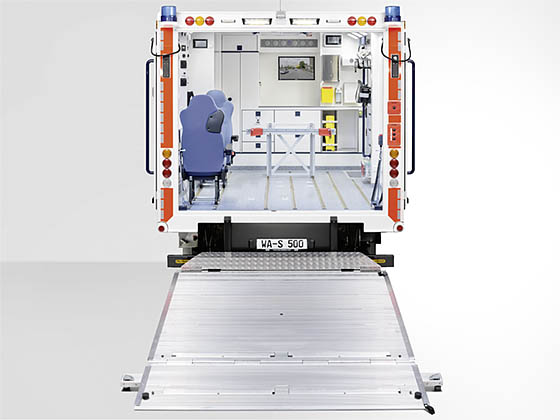

Lifting platform
Power supply 230 V during transport
Accident recorder

Model	MAN
Vehicle type	TGL 8.220
Engine power	162 kW / 220 hp
Gearbox	Tipmatic
Vehicle type	Body
Fuel	Diesel
Wheel base	3300 mm
Maximum total weight	7490 kg
