MULTIFUNCTION VEHICLE BARIATRIC, SPECIAL INFECTION AND INTENSIVE CARE TRANSPORT AMBULANCE, 10 T

Product code : 1480586539

0đ

Quantity:

Introduction
Comments

This multifunction vehicle enables both intensive care patients and obese or infectious patients to be transported thanks to the generous space available. The securing rails embedded in the floor of the vehicle make it possible both to securely load various bariatric or intensive care stretcher systems and also to transport patients in hospital beds. The patient can be moved into the vehicle gently using the tail lift. A specially developed air-treatment system constantly conditions and filters both the air in the patient compartment and the air flowing in and out. During transport, the system ensures a constant low pressure in the patient compartment, completely automatically, making the transportation of highly infectious patients possible. An integrated gassing unit provides the possibility of hygienically treating the vehicle without the risk of disease transmission.

Model	Bariatric, intensive care and special infection ambulance
Internal dimensions	Length 4990 mm Width 2400 mm Height 1976 mm
Doors	Side sliding door, front right Rear double-wing door
Compartments	Access compartment rear right Underfloor compartment for power supply, front left
Miscellaneous	Skylight as emergency exit Lifting platform for loads up to 1500 kg

Hermetically sealed box
Lifting platform: Dhollandia 1500 kg load-bearing capacity, platform length 2300 mm
270° rear double-wing doors
Underfloor compartments 1x right and 1x left as step (250 kg load-bearing capacity)
LED visual warning system
LED floodlights
LED warning system to front and rear

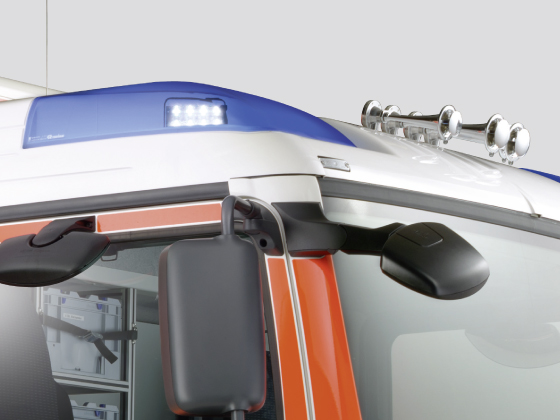

Sputnik nano LED front flasher
Special signalling system type 620
2 x 2 dual-tone siren with snow covers
LED rear warning system (RWS)
LED vehicle tail lights
Reversing camera
Outer wall of the box body made from polyester coated aluminium
Side hinged door
Access compartment front left, extra large
Access compartment front right, extra large
Generous cabinet on the partition wall, with large work surface

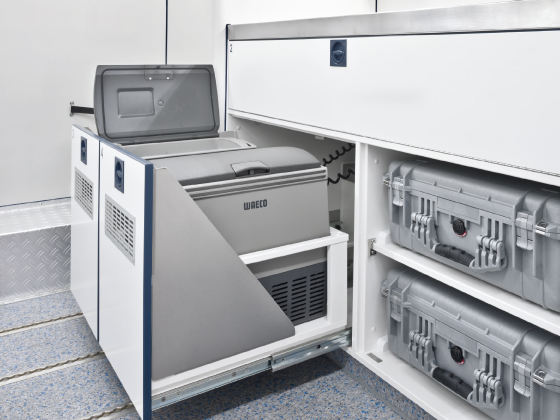

Compressor fridge and warming compartment integrated in the front cabinet
Flexible placement in the box on airline tracks
Fastening option for hospital bed, bariatric stretcher (Stryker Power Pro), bariatric stretcher (Stryker MX Pro)
Loading of an XXL rescue basket stretcher with bariatric sling (can be removed from driver's or co-driver's side)

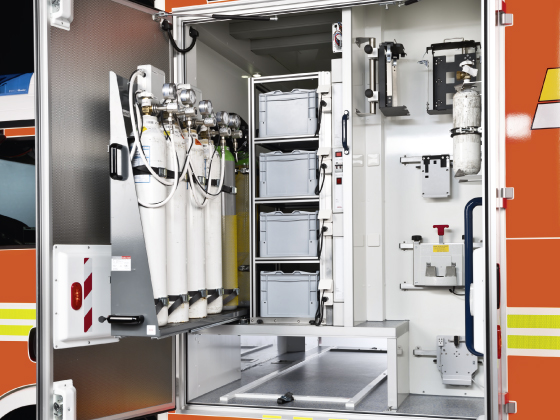

Heavy-duty drawer for 4 x 11 litre O₂ and
2 x compressed-air canisters

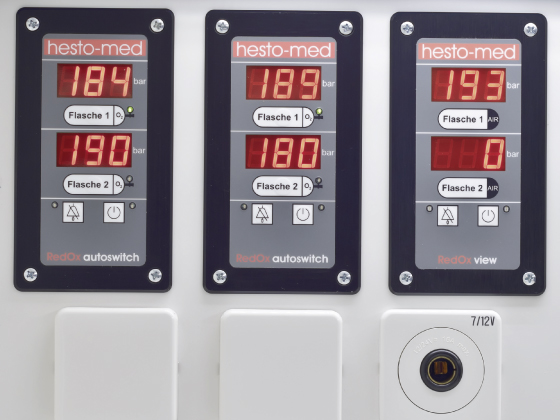

External display and control panel for 4 x O₂(Redox autoswitch)
External display for 2 x compressed air (Redox view)
Movable and removable tables on the left and right side wall
1800 VA inverter
Auxiliary battery pack 2 x 210 Ah (with undervoltage protective switch)
LED internal lighting with integrated trauma light
Intercom with cab
Camera monitoring of interior
Tower fixed in the airline tracks for medical devices
Additional option for mounting the technical medical equipment in the separate external storage compartment
9.5 kW auxiliary water heating
5 kW auxiliary air heating
Automatic climate control via the air-treatment system
Shelf system behind the driver's seat and co-driver's seat
Controls for the air-treatment system
Monitor for patient compartment monitoring
Intercom with the patient compartment
Reversing camera
Air-treatment system with integrated gassing unit
Constant filtering of the patient compartment air and of the air flowing in and out
Automatic climate control
Constant low pressure in the patient compartment

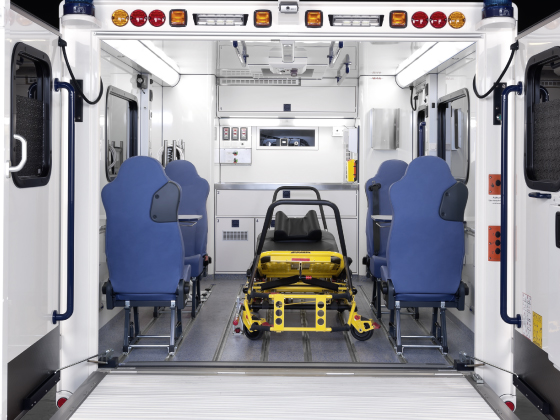

Maximum flexibility of seating and stretcher systems thanks to airline tracks in the floor of the vehicle
Lifting platform
230-V power supply during the journey
Accident recorder

Model	MAN
Type	TGL10.250
Engine power	250 PS
Transmission	Automatic
Type of vehicle	Box body
Wheel base	3900 mm
Maximum total weight	10,000 kg
